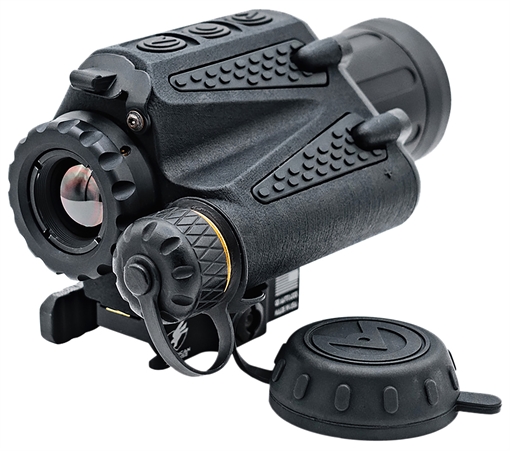

The Armasight Jockey 320 Thermal Clip-On – Black, 1x Base Magnification, Digital Zoom Reticle, 320x240 Sensor, 60Hz, 1x–4x Zoom (Model TAVT36CN9JOCK102, UPC 810081911689) is a compact, lightweight thermal imaging clip-on designed to mount in front of your existing day optic and instantly turn it into a powerful night-hunting system. With a fast 60Hz refresh rate, 320x240 thermal core, and 1–4x digital zoom, the Jockey 320 gives you clear thermal images and precise aiming in total darkness—without forcing you to re-zero your rifle.
If you’re looking to add thermal capability to your AR, rimfire, airgun, or crossbow without rebuilding your setup from scratch, this clip-on is built for exactly that.
Seamless Clip-On for Your 1–6x Day Scope
The Jockey 320 is engineered to mount directly in front of your 1–6x daytime scope using the included quick-detach (QD) mount.
Works flawlessly with most optics under 5x magnification, including popular LPVOs and compact hunting scopes.
No additional zeroing required – your daytime zero stays your nighttime zero.
QD mount lets you attach or remove the clip-on in seconds, so you can run the same rifle day and night.
This “in-front-of-the-scope” design means you don’t need to dedicate a rifle to thermal—simply clip it on when the sun goes down.
320x240 Thermal Core & 60Hz Refresh Rate
At the heart of the Jockey 320 is a 320x240 thermal sensor paired with a fast 60Hz frame rate, delivering smooth, detailed thermal imagery even on moving targets.
320x240 thermal resolution for clear heat signatures on game, hogs, and predators.
60Hz refresh rate keeps the image fluid and responsive while panning or tracking fast-moving animals.
NETD ≤ 40 mK sensitivity helps the unit pick out subtle temperature differences for better target separation in cluttered backgrounds.
This combination is ideal for night hunting, security, or farm use where you need to quickly detect and identify heat sources at distance.
1x Base Magnification with 1–4x Digital Zoom & Reticle
The Jockey 320 runs at true 1x optical magnification so it won’t distort your day scope’s image or eye relief, then adds digital zoom up to 4x for finer target detail when you need it.
1x base mag preserves your chosen scope’s field of view and reticle.
1–4x digital zoom lets you zoom in on distant heat signatures without changing your physical setup.
Built-in digital zoom reticle for use when zooming in on the thermal display, with reticle on/off selection to tailor your view.
This makes the Jockey 320 a true 1–4x thermal clip-on solution, excellent for typical hunting distances and closer-range tactical work.
High-Resolution 1024x768 OLED Display
Thermal data is projected onto a sharp 1024x768 XGA OLED display, giving you a crisp image in a compact package.
High-res display shows fine details in fur, foliage, and terrain.
Multiple color palettes (white hot, black hot, and more) let you choose the view that works best for your eyes and environment.
Image detail enhancement boosts contrast and edge clarity for improved target ID.
Whether you’re scanning fields, timber, or open desert, you can tune the display to match your surroundings and preferences.
Compact, Ultralight Housing That Won’t Weigh You Down
The Armasight Jockey 320 is built as a compact thermal clip-on to keep your rifle nimble:
Length: about 6.8 inches, width ~2.7 inches.
Weight: just ~0.79 lb, keeping your rifle balanced and fast-handling.
Housing material: Ultem high-strength polymer, offering durability with minimal weight.
Its light, compact design makes it a great match for .223/5.56 carbines, rimfire rifles, airguns, and crossbows, where extra weight up front can quickly become a problem.
Rugged, Weather-Ready – IP67 Rated
When the weather turns ugly, the Jockey 320 keeps working.
IP67 water and dust resistance for reliable operation in rain, snow, dust, and damp conditions.
Designed around Armasight’s Iron Wolf thermal technology platform for robust, field-proven performance.
Whether you’re stalking hogs in the humidity of the South or calling coyotes in winter, this clip-on is built to handle real-world abuse.
Simple Three-Button Controls & 4-Hour Runtime
Armasight made the Jockey 320 easy to run in the dark, with intuitive three-button controls that are glove-friendly and straightforward.
Quickly switch color palettes, adjust brightness, and control digital zoom.
Powered by two CR123A batteries, delivering up to 4 hours of runtime at 20°C.
Battery status indicator keeps you aware of remaining power.
No complicated menus, no steep learning curve—just fast access to the features you actually need in the field.
Video Recording, Photo Capture & USB-C Connectivity
The Jockey 320 isn’t just for viewing—it can record what you see:
Video recording and still image capture built in, so you can replay hunts, share with friends, or review shots.
USB video stream and USB-C interface allow you to offload files and connect to compatible external devices.
For hunters, outfitters, and land managers, this makes the Jockey 320 a useful tool for documentation and training as well as nighttime shooting.
Ideal Platforms & Applications
Because it mounts in front of your existing optic and keeps things light, the Armasight Jockey 320 Thermal Clip-On is ideal for:
AR-15 / .223 / 5.56 rifles used for hog and coyote hunting.
Rimfire rifles for small game and pest control at night.
Air rifles and PCP guns where low recoil and precision matter.
Crossbows that need thermal capability without heavy scope swaps.
If you want one thermal solution that can move between different firearms and setups, this clip-on gives you maximum flexibility.
What’s in the Box
From the factory, the Armasight Jockey 320 TAVT36CN9JOCK102 typically includes:
Everything you need to mount, zero, power up, and start hunting is included in one kit.
Key Specifications – Armasight Jockey 320 Thermal Clip-On (TAVT36CN9JOCK102)
From Armasight and major dealers:
Model: Jockey 320 Compact Thermal Clip-On
Manufacturer: Armasight
Part Number: TAVT36CN9JOCK102
UPC: 810081911689
Color: Black
Magnification: 1x optical base, 1–4x digital zoom
Objective Lens Diameter: 19mm
Sensor Resolution: 320x240
Refresh Rate: 60Hz
Display: 1024x768 OLED
Detection Range: ~708–774 m on human-sized target (depending on source)
Field of View: approx. 11.6°–8.7°
Eye Relief: 25mm
NETD: ≤ 40 mK
Power: (2) CR123A batteries, up to ~4 hours runtime at 20°C
Mount: QD mount, clip-on in front of 1–6x day scope
Housing Material: Ultem high-strength polymer
Water/Dust Rating: IP67
Why Choose the Armasight Jockey 320 Thermal Clip-On?
If you’re serious about night hunting or thermal-capable shooting but want to keep your existing optics, the Armasight Jockey 320 Thermal Clip-On Black 1x with Digital Zoom Reticle, 320x240, 60Hz, 1x–4x Zoom (TAVT36CN9JOCK102) gives you:
Seamless clip-on compatibility with 1–6x scopes and optics under 5x.
A fast, 60Hz 320x240 thermal engine for fluid, detailed imaging.
Lightweight, compact design that won’t wreck your rifle’s balance.
Built-in digital zoom, video recording, multiple palettes, and USB-C connectivity.
Rugged, IP67-rated construction ready for harsh weather and hard use.
For hunters, shooters, and professionals who want a powerful thermal upgrade without rebuilding their entire rifle, the Jockey 320 is a feature-rich, ready-to-run solution.
