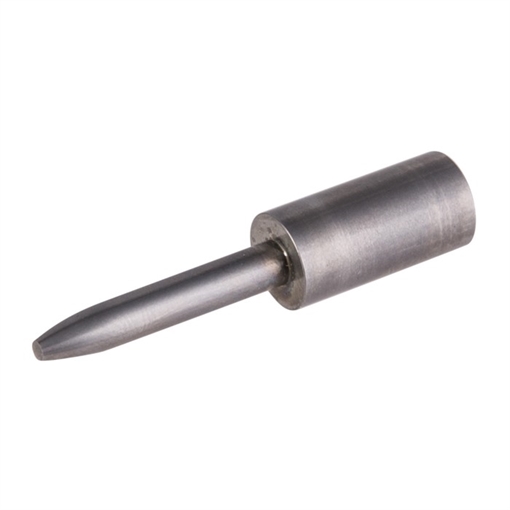

CARBIDE EXPANDER MANDRELS 749014408 – High‑Precision Tool Expansion Solution
Elevate your machining performance with the Carbide Expander Mandrels 749014408. Engineered for demanding CNC environments, this premium expander mandrel delivers unmatched rigidity, repeatable accuracy, and extended tool life for a wide range of industrial applications.
Key Benefits
- Maximum Rigidity: Solid carbide construction minimizes deflection during high‑speed cutting.
- Precision Expansion: Uniform expansion ensures consistent tool alignment and reduces run‑out.
- Enhanced Tool Life: Reduces wear on cutting inserts and holders, lowering overall operating costs.
- Rapid Tool Changes: Quick‑release design minimizes downtime on the shop floor.
- Versatile Compatibility: Fits a broad range of standard CNC tool holders and collet systems.
Technical Specifications
| Specification | Detail |
|---|
| Part Number | 749014408 |
| Material | Solid Tungsten Carbide (WC) with Cobalt Binder |
| Expansion Range | 0.10 mm – 0.30 mm (adjustable) |
| Shank Diameter | Ø 16 mm (standard) |
| Maximum Cutting Speed | 12 000 rpm |
| Operating Temperature | ‑40 °C to +250 °C |
| Weight | 0.45 kg |
Why Choose Carbide Expander Mandrels?
When precision matters, the CARBIDE EXPANDER MANDRELS 749014408 stands out as the preferred choice for manufacturers seeking reliability and performance. Its high‑strength carbide body resists wear, while the engineered expansion mechanism provides consistent tool positioning, even under extreme cutting forces.
Compatibility & Applications
This mandrel is compatible with:
- Standard ISO and DIN collet chucks
- BT, HS, and HSK tool holders
- Turner and milling machines requiring high‑speed spindle operation
Ideal for applications such as:
- Precision turning of aerospace alloys
- High‑speed milling of hardened steel
- Tooling in automotive component manufacturing
- Prototyping and small‑batch production runs
Installation & Maintenance Tips
- Clean the spindle: Remove debris and oil before mounting the mandrel.
- Align the mandrel: Use a dial indicator to verify concentricity within 0.02 mm.
- Set expansion: Adjust the expansion screw to the required tolerance, then lock in place.
- Inspect regularly: Check for wear on the carbide surface and replace the mandrel if cracks appear.
- Lubricate sparingly: Use high‑temperature spindle oil only on moving threads to avoid contamination.
Frequently Asked Questions
Can the 749014408 be used with non‑carbide tools?
Yes, the mandrel’s expansion mechanism works with both carbide and high‑speed steel tools, provided the tool shank matches the mandrel’s diameter.
What is the recommended maximum spindle speed?
The mandrel is rated for up to 12,000 rpm. Exceeding this speed may reduce service life.
How often should the mandrel be inspected?
For high‑volume production, inspect after every 200 hours of operation or after any incident of tool breakage.
Is the mandrel compatible with automatic tool changers?
Yes, it is designed to integrate seamlessly with most ATC systems that support standard 16 mm shank tools.
Technical Support & Warranty
Our dedicated technical support team is available 24/7 to assist with installation, troubleshooting, and optimization. The CARBIDE EXPANDER MANDRELS 749014408 comes with a 2‑year limited warranty against material defects.
Order Now and Experience Precision Like Never Before
Boost your machining efficiency and achieve tighter tolerances with the Carbide Expander Mandrels 749014408. Add it to your inventory today and enjoy the benefits of superior tool stability and longevity.
