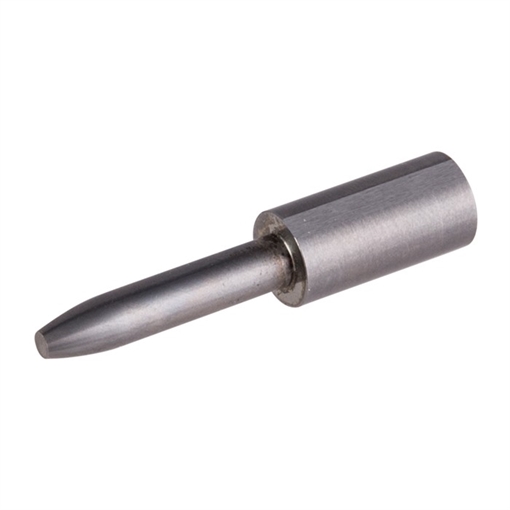

Carbide Expander Mandrels 749014409 – Precision Expansion for High‑Performance Cutting Tools
Discover the ultimate solution for tool stability and accuracy with the CARBIDE EXPANDER MANDRELS 749014409. Engineered for demanding CNC machining environments, these mandrels provide superior expansion control, ensuring consistent tool geometry and prolonged service life for your carbide inserts. Whether you are working on aerospace, automotive, or high‑precision manufacturing, this expander mandrel delivers the reliability and performance required to maintain tight tolerances and optimal surface finish.
Key Benefits & Features
- Precision Expansion Technology: Designed to deliver uniform pressure across the carbide insert, eliminating misalignment and reducing wear.
- High‑Strength Carbide Construction: Offers exceptional hardness and resistance to thermal deformation, even under high‑speed machining conditions.
- Universal Compatibility: Fits a wide range of standard and custom tool holders, making it a versatile addition to any machining setup.
- Optimized for CNC Machining: Reduces tool vibration, improves chip evacuation, and enhances cutting efficiency.
- Easy Installation: Simple, tool‑free mounting system ensures quick changes and minimal downtime.
- Extended Tool Life: Balanced expansion minimizes stress concentrations, extending the lifespan of expensive carbide inserts.
- Corrosion‑Resistant Finish: Protective coating prevents oxidation and maintains performance in harsh shop floor environments.
Technical Specifications
| Specification | Detail |
|---|
| Part Number | 749014409 |
| Material | High‑grade tungsten carbide with cobalt binder |
| Expansion Range | 0.10 mm – 0.35 mm (adjustable) |
| Maximum Working Temperature | 1,200 °C (2,192 °F) |
| Dimensions (L × W × H) | 150 mm × 30 mm × 25 mm |
| Weight | 0.45 kg |
| Compliance | ISO 9001, ISO 14001 |
Why Choose Carbide Expander Mandrels 749014409?
In high‑speed machining, tool stability is paramount. The Carbide Expander Mandrels 749014409 are engineered to maintain exact insert positioning, reducing run‑out and ensuring repeatable results. Their robust carbide composition resists deformation, allowing you to push cutting speeds and feed rates without sacrificing accuracy. This translates to higher productivity, lower tooling costs, and a competitive edge in precision manufacturing.
Applications
The versatile design of the 749014409 expander mandrel makes it ideal for:
- Turning operations on CNC lathes
- Milling and drilling of hardened steels and alloys
- Finishing passes on aerospace components
- High‑volume automotive part production
- Toolroom prototyping and custom fixture setups
Installation & Maintenance Tips
- Ensure the tool holder is clean and free of debris before mounting the mandrel.
- Align the mandrel’s expansion groove with the insert’s seating surface.
- Use the calibrated torque wrench to achieve the recommended expansion force.
- Inspect the mandrel periodically for signs of wear or chip accumulation.
- Replace the mandrel if any cracks or deformation are observed to maintain optimal performance.
Customer Reviews
“Since switching to the 749014409 carbide expander mandrels, our tool changeover time has dropped by 25% and the surface finish on our machined parts is consistently smoother. A game‑changer for our production line!” – John D., CNC Machining Supervisor
“The durability of these mandrels is impressive. Even after prolonged high‑temperature runs, there’s no loss in expansion accuracy.” – Maria S., Tooling Engineer
SEO Keywords
carbide expander mandrels, 749014409, CNC tool expanders, high‑performance carbide mandrel, precision machining accessories, tool holder expansion, cutting tool stability, industrial machining solutions, carbide insert expansion, high‑speed machining mandrel.
Related Products
Technical Documentation & Support
Download the full product datasheet, installation guide, and maintenance manual in PDF format:
For technical assistance or to request a sample, contact our expert support team at support@example.com or call 1‑800‑555‑1234.
