Crimson Trace 01-6960-1 LL-808 Laserguard Pro – Red Laser & Light for Smith & Wesson M&P Shield .45 ACP

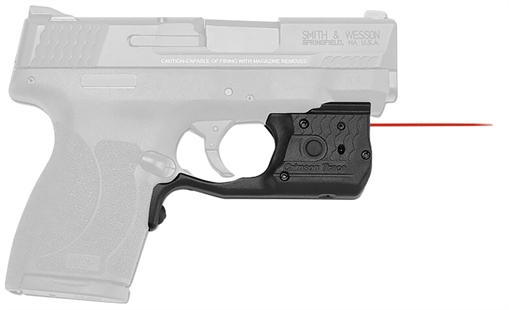

The Crimson Trace 01-6960-1 LL-808 Laserguard Pro is a trigger-guard-mounted laser and light module engineered specifically for the Smith & Wesson M&P Shield .45 ACP platform. Combining a visible red aiming laser with an integrated white LED, it is designed to provide both target indication and close-range illumination in one compact housing.crimsontrace.com+1

Model Identification and Compatibility

This unit is commonly identified by several catalog and tracking numbers, including:

• Model: LL-808 Laserguard Pro

• Manufacturer Part Number (MPN): 0169601 / 01-6960-1

• UPC: 610242008209Shooting Surplus+1

It is purpose-built to fit the Smith & Wesson M&P Shield .45 ACP pistol and mounts directly around the trigger guard, so no accessory rail is required. The contoured housing follows the profile of the Shield .45 to maintain a slim footprint suitable for concealed carry holsters designed around that handgun.TheGunZone+1

Illumination and Laser Performance

The LL-808 Laserguard Pro integrates a red laser and a white LED into a single unit:

• Laser color: Red, visible-spectrum beam

• Laser output: Approx. 5 mW (Class 3R), factory-sighted around 50 ftTheGunZone+1

• Effective range: About 50 ft for typical defensive distancesAmmoJoy+1

• White light output: Approximately 150-lumen LED white lightcrimsontrace.com+2OpticsPlanet+2

This combination is intended for close- to intermediate-range engagements, where clear identification and a defined aiming reference are needed in low- or reduced-light environments.

Four Operational Modes

The Crimson Trace LL-808 provides multiple user-selectable operating configurations, cycling through via its integrated controls:crimsontrace.com+2Palmetto State Armory+2

1. Laser + Light – Red laser and 150-lumen LED activated simultaneously.

2. Laser Only – Red laser active with light off for situations where illumination is not required.

3. Light Only – 150-lumen LED on without the laser, functioning as a dedicated weapon-mounted light.

4. Laser + Light Strobe – Red laser combined with strobing white light for increased visual disruption and signaling.

These modes allow the user to configure the unit to match lighting conditions, range, and personal preferences.

Instinctive Activation and Controls

A key design element of the Laserguard Pro series is Crimson Trace’s “Instinctive Activation” feature. The LL-808 uses a pressure-sensitive activation pad located on the front of the grip area. When the pistol is held with a normal firing grip, the user can activate the unit by simply wrapping the fingers around the grip, eliminating the need to break the grip to reach a separate switch.crimsontrace.com+2Range USA+2

Additional control features include:

• Master on/off switch: Allows the user to disable the unit entirely when desired (e.g., for storage or administrative handling).Shooting Surplus+1

• Mode selection control: Used to cycle through the four available operating modes.

• User-adjustable windage and elevation: Hex or screw adjustments enable fine-tuning of the laser point-of-aim to the point-of-impact of the specific firearm and ammunition combination.JB Armament+2AmmoJoy+2

Construction, Dimensions, and Environmental Resistance

The LL-808 Laserguard Pro is built around a polymer/rubber composite housing, giving it a balance of rigidity and impact resistance along with a more tactile gripping surface around the contact points.OpticsPlanet+1

Typical published dimensions and characteristics include:

• Mount type: Trigger guard mount

• Length: Approx. 3 in

• Width: Approx. 1 in

• Height: Approx. 1 in

• Weight: Around 3–4 oz (varies slightly by source)OpticsPlanet+1

Many listings specify an IPX4 water-resistant rating, meaning the unit is designed to withstand splashing water from any direction, appropriate for common field or everyday carry conditions, though it is not intended for submersion.TLO Outdoors

Power Source and Runtime

The Crimson Trace LL-808 is powered by a single CR2 lithium battery, a common compact camera-style cell.Shooting Surplus+1

Published runtime figures vary slightly by source and mode, but typical data indicate:

• Approximate runtime: Around 2+ hours continuous use in representative modes, with some listings noting up to approximately 4 hours depending on usage pattern and operating mode.Range USA+1

Actual runtime will depend on factors such as ambient temperature, duty cycle, and whether the light, laser, or both are used simultaneously.

Installation and Zeroing

The LL-808 Laserguard Pro is intended as a user-installable accessory:

• Clamshell-style halves fit around the Smith & Wesson M&P Shield .45 ACP trigger guard.

• The unit secures with included hardware, typically without requiring permanent modifications to the firearm.TheGunZone+1

• After installation, the user adjusts windage and elevation so that the red laser dot coincides with the desired point of impact at a chosen zero distance (often 7–15 yards for typical defensive use).AmmoJoy+1

Because the LL-808 is contoured specifically for the Shield .45 frame, alignment and holster compatibility are designed around that model, and it is not a universal-fit product.

Key Technical Specifications (Summary)

For quick reference, typical published specifications for the Crimson Trace 01-6960-1 LL-808 Laserguard Pro include:TLO Outdoors+3OpticsPlanet+3Shooting Surplus+3

• Manufacturer: Crimson Trace

• Model: LL-808 Laserguard Pro

• MPN: 0169601 / 01-6960-1

• UPC: 610242008209

• Laser type: Visible red laser, approx. 5 mW output

• Light output: ~150-lumen white LED

• Effective laser range: ~50 ft (factory-sighted distance)

• Power source: 1 × CR2 lithium battery

• Runtime: Approx. 2–4 hours (mode-dependent)

• Mounting interface: Trigger guard mount, pistol-specific

• Primary firearm fit: Smith & Wesson M&P Shield .45 ACP

• Adjustment: User-adjustable windage and elevation

• Operating modes:

  • Laser + Light

  • Laser Only

  • Light Only

  • Laser + Light Strobe

• Housing: Polymer/rubber combination, black finish

• Water resistance: IPX4 (splash resistant, not immersion-rated)

Use Case Considerations

The LL-808 Laserguard Pro is designed as an aiming aid and illumination tool for a factory Smith & Wesson M&P Shield .45 ACP pistol. In typical applications it may be used:

• As a visual reference to supplement or complement factory iron sights, especially in low light.

• As a compact weapon-mounted light for close- to mid-range target identification.

• In training environments, where the visible laser can provide feedback on muzzle movement and trigger control.

All use should be consistent with local laws, safe firearm-handling practices, and manufacturer guidance.

By integrating a red aiming laser, 150-lumen white light, instinctive activation, and multiple operating modes into a form factor tailored specifically to the Shield .45 ACP, the Crimson Trace 01-6960-1 LL-808 Laserguard Pro offers a compact, technical solution for users who require both illumination and visual aiming aids in a single, pistol-specific module.
