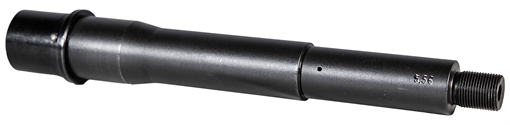

Diamondback DB Barrel — 5.56x45mm NATO, 7" Pistol-Length, Black Nitride, 4150 Chrome Moly Vanadium Steel | Model 556P7H50B8R (UPC: 815875019169)
Build a compact, reliable AR-pattern pistol with the Diamondback DB 7" 5.56x45mm NATO Barrel. Precision-machined from 4150 Chrome Moly Vanadium (CMV) steel and treated with a durable black nitride (QPQ) finish, this short barrel is purpose-built for maneuverability, longevity, and easy maintenance. The pistol-length gas system supports dependable cycling in ultra-compact configurations, while the nitride bore and exterior fight corrosion and make clean-up fast—ideal for CQB-style training, range fun, and suppressed builds (when properly tuned).
Why Choose This Diamondback 7" 5.56 Barrel?
Compact performance, real durability: The 7-inch length keeps overall build size minimal without compromising on a duty-grade 4150 CMV material that’s proven under heat and hard use.
Nitride (QPQ) inside & out: The QPQ process increases surface hardness, resists rust, and reduces copper/carbon fouling, so the bore cleans up quickly and wears more slowly over time.
Pistol-length gas for short systems: Optimized gas placement helps maintain reliability on short barrels—especially when combined with the right buffer/spring and (optionally) an adjustable gas block.
5.56 NATO chamber: Works with common 5.56 loads and (per typical 5.56 chamber guidance) .223 Rem ammunition; always verify manufacturer guidance and ensure proper headspace.
AR-15 pattern compatibility: Designed for AR-15 uppers, free-float handguards, and standard 5.56 BCGs for a straightforward build path.
Key Features at a Glance
Caliber: 5.56x45mm NATO
Barrel Length: 7 inches
Material: 4150 Chrome Moly Vanadium (CMV) steel
Finish/Treatment: Black Nitride (QPQ), inside and out
Gas System: Pistol-length
Platform: AR-15 pattern pistols/SBRs (where lawful)
Model: 556P7H50B8R
UPC: 815875019169
Color: Matte black nitride
Builder’s note: Confirm twist rate, muzzle thread, gas journal diameter, and contour for your specific production run to match gas blocks, muzzle devices/suppressor mounts, and preferred bullet weights.
Performance Benefits You’ll Notice
Maneuverability in tight spaces: The short length keeps the front end light for quick transitions and better control during close-in drills.
Cleaner, faster maintenance: QPQ nitride reduces fouling adhesion, helping you spend less time scrubbing and more time shooting.
Heat & erosion resistance: 4150 CMV plus nitride treatment helps resist throat erosion for more consistent velocities session after session.
Tunable reliability: Pairing the pistol gas with an adjustable gas block (highly recommended for suppressed use) and a properly weighted buffer can yield smooth, consistent operation.
Ideal Use Cases
Compact AR-pistol builds where overall length and agility are top priorities
Suppressed configurations tuned for backpressure and ejection pattern control
Vehicle/pack guns (where lawful) requiring portability and fast handling
Range/CQB training with red dots or low-profile optics
Build & Compatibility Checklist
Upper receiver: AR-15 mil-pattern, 5.56 compatible
BCG: 5.56/.223 bolt carrier group, properly headspaced
Gas system: Pistol-length gas tube; verify gas journal (e.g., .750")
Handguard: Short free-float rail with clearance for your chosen muzzle device or suppressor mount
Muzzle device: Match thread pitch and consider options that aid backpressure management on short barrels
Buffer system: Heavier buffers and tuned springs can improve dwell, ejection, and lock-back reliability
Installation Tips
Inspect & prep: Degrease the extension and gas journal; lightly oil mating surfaces.
Torque & align: Install the barrel nut to spec and confirm gas tube alignment through the upper.
Secure gas block: Align to port; dimple/pin as appropriate and apply thread locker per manufacturer instructions.
Headspace check: Always verify with GO/NO-GO gauges before live fire.
Function test & tune: Validate lock-back on empty magazine; adjust gas and buffer weight as needed (especially when suppressed).
Specifications
(Twist rate, muzzle threads, gas journal diameter, and exact contour may vary by production; confirm details prior to ordering companion parts.)
Frequently Asked Questions
Q: Can I shoot .223 Remington through this barrel?
A: Most 5.56 NATO chambers accept .223 Rem. Always follow the manufacturer’s guidance and confirm proper headspace and ammo selection.
Q: Is an adjustable gas block necessary?
A: While not mandatory, it’s strongly recommended for short barrels—especially suppressed—to fine tune reliability, recoil impulse, and ejection.
Q: How accurate is a 7" barrel?
A: Very capable within its intended distances. Barrel length primarily influences velocity rather than intrinsic precision; with quality ammo and parts, expect reliable short-range accuracy.
Q: What legal considerations apply?
A: Know and follow federal, state, and local laws regarding barrel length, pistol vs. SBR classification, transport, and suppressor use before building or modifying any firearm.
Recommended Pairings
Adjustable gas block + pistol-length gas tube
Heavier buffer/spring calibrated for short-barrel cycling
Low-profile free-float handguard for compact ergonomics
Flash hider or brake (or suppressor interface) matched to thread pitch
Red-dot optic for rapid sight acquisition
SEO Keyword Ideas
Diamondback 7" 5.56 barrel, AR-15 pistol barrel 7 inch, 4150 CMV black nitride barrel, pistol-length gas 5.56 barrel, Diamondback 556P7H50B8R, 815875019169, compact AR pistol barrel, QPQ nitride AR barrel, short barrel 5.56 NATO, Diamondback DB barrel 5.56
Shrink your build without sacrificing reliability. The Diamondback DB 7" 5.56x45mm NATO Black Nitride 4150 CMV Barrel gives you a tough, easy-to-clean foundation for ultra-compact AR-15 projects—suppressed or unsuppressed—when tuned correctly.
