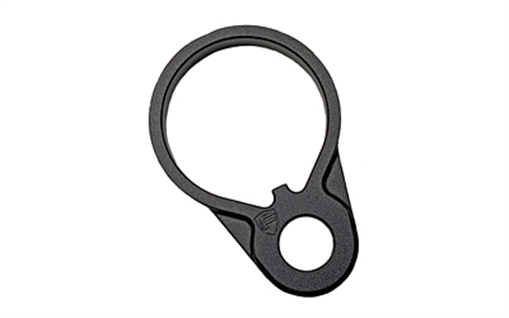

The Fortis Manufacturing QD End Plate with a premium black anodized finish is the ultimate solution for high‑performance quick‑disconnect (QD) assemblies in demanding industrial environments. Engineered to meet the rigorous standards of modern manufacturing, this end plate delivers unparalleled strength, precision, and corrosion resistance, making it the ideal choice for CNC machines, automation equipment, and heavy‑duty tooling.
Key Features & Benefits
- Robust Black Anodized Finish: Provides a hard‑wear surface that resists scratches, abrasion, and harsh chemicals while delivering an attractive, professional appearance.
- Precision‑Machined Tolerances: Guarantees a perfect fit with Fortis QD connectors, reducing assembly time and eliminating misalignment issues.
- High Load Capacity: Engineered to handle dynamic and static loads up to 5,000 lb (2,267 kg), ensuring reliable performance under heavy stress.
- Corrosion‑Resistant: The anodized coating offers superior protection against moisture, salt, and industrial contaminants, extending service life.
- Easy Installation: Pre‑drilled, standard‑size holes align with existing QD hardware, enabling quick bolt‑on installation without additional tooling.
- Versatile Application: Suitable for a wide range of industries, including aerospace, automotive, robotics, and general manufacturing.
Technical Specifications
| Model | QDEND |
|---|
| UPC | 855476008742 |
|---|
| Material | 6061‑T6 Aluminum Alloy |
|---|
| Finish | Black Anodized (Type III Hard Coat) |
|---|
| Dimensions (L × W × T) | 3.00" × 2.00" × 0.250" |
|---|
| Weight | 0.45 lb (0.20 kg) |
|---|
| Hole Pattern | 4‑hole, 0.500" (12.7 mm) center‑to‑center |
|---|
| Thread Size | 1/4‑20 UNC |
|---|
| Temperature Range | ‑40 °F to +250 °F (‑40 °C to +121 °C) |
|---|
| Compliance | ISO 2768‑m, ASTM B209 |
|---|
Why Choose Fortis Manufacturing’s QD End Plate?
Fortis Manufacturing, Inc. has built a reputation for delivering high‑quality, reliable components that keep production lines moving. The QD End Plate’s combination of a durable anodized finish and precision engineering ensures that your equipment experiences minimal downtime and maximum efficiency. Whether you are upgrading an existing system or designing a new line, this end plate provides the confidence you need for long‑term performance.
Ideal Applications
- Robotic arm joint housings
- Automated assembly stations
- CNC machine tool changers
- Aerospace component mounting
- Heavy‑duty conveyor systems
- Marine and offshore equipment where corrosion resistance is critical
Installation Tips
- Verify that the mounting surface is clean and free of debris.
- Align the pre‑drilled holes of the QD End Plate with the corresponding QD connector bolts.
- Tighten all bolts to a torque of 25 lb‑ft (34 Nm) using a calibrated torque wrench.
- Inspect the anodized coating for any damage before installation; replace if scratches exceed 0.001".
- Perform a functional test of the quick‑disconnect system before returning the equipment to full operation.
