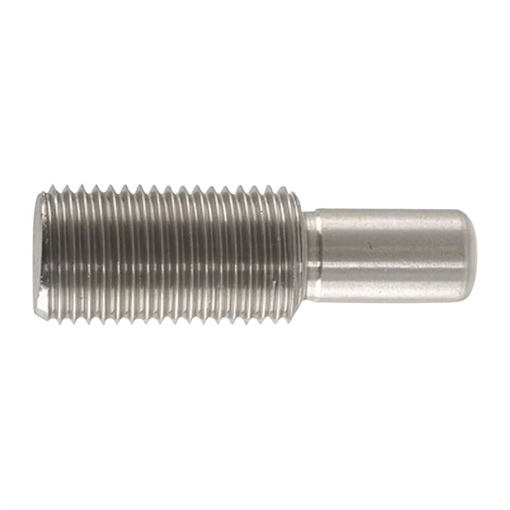

Hornady Neck Turning Mandrel — 7mm (391924 | UPC 090255919240)

Elevate your 7mm handloads with the Hornady 7mm Neck Turning Mandrel (391924). Precision-ground and polished, this caliber-specific mandrel supports the inside diameter of the case neck while you uniform the outside with a neck-turning tool. The result is consistent neck wall thickness, improved neck tension uniformity, reduced bullet runout, and the kind of shot-to-shot repeatability that tightens groups—whether you’re loading 7mm PRC, 7mm Remington Magnum, 7mm-08 Remington, 7mm SAUM, or other 7mm-based cartridges.

Why Neck Turning Improves 7mm Accuracy

• Uniform Neck Walls: Truing thickness eliminates high spots so the bullet starts straighter and releases consistently at ignition.

• Predictable Neck Tension: Consistency at the neck yields lower ES/SD, better vertical control, and more trustworthy ballistics solutions.

• Reduced Runout: Properly supported necks during turning help align the bullet to the bore, reducing TIR (total indicated runout).

• Confidence at Distance: In the 7mm class—famous for high-BC bullets—uniform necks help translate your solver data into real-world hits.

Key Benefits of the Hornady 7mm Mandrel

• Caliber-Exact Support: Sized specifically for 7mm (.284") brass; supports the neck I.D. during outside turning for cleaner, chatter-free cuts.

• Hardened, Polished Steel: Smooth surface reduces friction and protects brass from galling as you work.

• Tool-System Compatibility: Designed to pair with Hornady’s neck-turning system and other mandrel-style tools within the Hornady ecosystem.

• Repeatable Outcomes: Precise dimensions and finish help you hit your target wall thickness across large brass batches.

Works with Popular 7mm Cartridges*

• 7mm PRC

• 7mm Remington Magnum

• 7mm-08 Remington

• 7mm SAUM / 7mm WSM

• .280 Remington / .280 Ackley Improved

• 7×57 Mauser, and other 7mm-based variants
  *Always verify chamber specs and desired neck clearance—especially for tight-neck custom chambers.

How to Use (High-Level Workflow)

1. Prep & Size: Clean and size your brass as preferred. Deburr/trim if needed.

2. Light Neck Lube: Apply a mandrel-safe, light lube to the inside neck.

3. Mandrel Insert: Slide the 7mm mandrel into the neck to support the I.D. during the cut.

4. Set Cut Depth: Adjust your neck-turner so the cutter just kisses high spots; then dial to reach your target wall thickness.

5. Turn Smoothly: Rotate with steady pressure; the mandrel keeps the neck round for a uniform cut.

6. Measure & Verify: Use a ball mic/tubing mic at multiple clock positions to confirm even thickness.

7. Finalize: Clean the lube, then proceed with your final sizing/expand step to establish the exact neck tension you prefer.

Pro Tip: Many precision reloaders expand/mandrel first, turn the necks, then perform a light size to achieve their target tension (e.g., 0.0015–0.003").

Best Practices for Consistent 7mm Loads

• Anneal Regularly: Annealing helps keep neck hardness consistent, improving both turning feel and tension uniformity.

• Set Realistic Thickness: Match wall thickness to your chamber neck—tight-neck customs require careful planning.

• Mind the Shoulder Junction: Blend the cut lightly at the neck/shoulder to avoid creating a stress riser.

• Measure Often: Check at least 4–6 points around the neck; you’re aiming for uniformity, not maximum material removal.

• Document Everything: Record cutter settings, thickness results, and the ES/SD achieved with each lot.

Features & Specifications (At a Glance)

• Product: Hornady 7mm Neck Turning Mandrel

• Caliber: 7mm (.284")

• Function: Internal neck support for outside neck turning

• Material: Hardened, precision-ground steel with polished finish

• Part Number: 391924

• UPC: 090255919240

• Use Case: Precision reloading for long-range and hunting applications where uniform necks and consistent tension matter

Frequently Asked Questions

Is this an expander mandrel?
No. An expander mandrel sets neck I.D. for tension. This turning mandrel supports the neck while you remove material from the outside. Many workflows use both.

What wall thickness should I target?
It depends on your chamber print and brass brand. For factory chambers, remove only enough to make thickness uniform. For tight-neck customs, consult your gunsmith and print.

Will turning always improve accuracy?
If your brass has uneven necks, turning tends to reduce runout and stabilize neck tension, which can tighten groups—especially with long, high-BC 7mm bullets.

Anneal before or after turning?
Both approaches are used. Many prefer to anneal before turning to ensure a smooth cut, then anneal on a schedule after several firings.

SEO Highlights (Naturally Integrated)

Hornady 7mm neck turning mandrel, 391924, UPC 090255919240, outside neck turning support tool for 7mm PRC, 7mm Rem Mag, 7mm-08, 7mm SAUM, .280 AI; improve neck tension, reduce runout, lower ES/SD, precision reloading mandrel, hardened polished steel.

Safety & Responsibility

Always follow safe reloading practices. Verify load data from reputable manuals, measure frequently, and confirm your target neck thickness against your chamber specs. Wear eye protection and work methodically.

Hornady 7mm Neck Turning Mandrel (391924) — the reliable foundation for uniform necks, predictable tension, and repeatable accuracy across your 7mm handloads.
