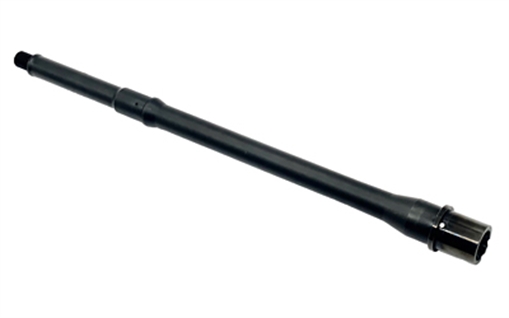

LBE Unlimited AR-15 Replacement Barrel — 5.56x45mm NATO — 14.50" — Cold Hammer Forged — Threaded — Black Nitride — Fits AR-15 — BAR145M — UPC 706612408288

Build a tough, maneuverable carbine with the LBE Unlimited 14.50" AR-15 Replacement Barrel. Chambered in 5.56x45mm NATO and cold hammer forged (CHF) for exceptional strength and long service life, this barrel combines a corrosion-resistant Black Nitride finish with a threaded muzzle ready for brakes, comps, or suppressor adapters. The 14.5-inch length hits the sweet spot for velocity, balance, and handling—ideal for general-purpose carbines, duty builds, and suppressed set-ups. *(Model: BAR145M | UPC: 706612408288) *

Why Choose a 14.5" CHF Barrel from LBE

• Cold Hammer Forged durability: CHF compacts the steel’s grain structure for a hard, wear-resistant bore that stands up to high round counts, heat, and aggressive training cycles.

• Black Nitride protection: QPQ/Melonite-style nitride hardens the surface inside and out, boosting corrosion resistance, lubricity, and ease of cleaning.

• Balanced performance: 14.5 inches offers better blast/velocity than shorter barrels while remaining handy in vehicles, structures, and tight terrain.

• Threaded muzzle: Arrives threaded for your preferred muzzle device—comp, brake, or suppressor mount (most 5.56 barrels are 1/2x28; verify your barrel’s marking).

• 5.56 NATO chamber: Run both 5.56 NATO and .223 Rem safely with generous chamber geometry for reliable extraction across ammunition types.

• Drop-in AR-15 compatibility: Standard extension and shoulder dimensions for straightforward installs with common handguards, gas blocks, and barrel nuts.

Key Specs (At a Glance)

• Manufacturer: LBE Unlimited

• Product: AR-15 Replacement Barrel

• Caliber/Chamber: 5.56x45mm NATO (.223 Rem compatible)

• Length: 14.50"

• Manufacture: Cold Hammer Forged (CHF) steel

• Finish: Black Nitride (QPQ/Melonite)

• Muzzle: Threaded (verify pitch; typical 5.56 is 1/2x28)

• Platform: AR-15

• Model / MPN: BAR145M

• UPC: 706612408288

• Includes: Barrel only (gas block/tube, muzzle device, and small parts sold separately)

Gas System & Twist: Gas length (carbine/mid) and twist rate can vary by run. Confirm your barrel’s stamp or product label to match the correct gas tube, buffer, and ammo preferences.

Real-World Performance Advantages

• Consistency under heat: CHF + nitride help maintain accuracy and reduce throat erosion during long strings.

• Reliable cycling: M4-style extension geometry (typical) and a proper 5.56 chamber support dependable feeding with brass and quality steel-case loads.

• Build flexibility: Pair with a free-float M-LOK® handguard, low-profile gas block, and tuned buffer system for a smooth, controllable shooter.

Ideal Use Cases

• General-purpose carbine: A do-it-all AR that balances size, recoil, and reach.

• Home & personal defense: Manageable length with practical terminal performance and faster follow-ups.

• Suppressed builds: Threaded muzzle simplifies adding a 5.56-rated can (where legal). Tune gas/buffer for optimal reliability.

• Training & classes: CHF durability and nitride cleanup make life easier on high-round-count days.

Pin-and-Weld Note (Overall Length)

A 14.5" barrel typically requires a pinned & welded muzzle device to reach the legal 16" minimum barrel length in many jurisdictions. If you’re building a rifle (not a pistol or SBR), choose a compliant device (e.g., extended flash hider/brake) and have it permanently attached by a qualified gunsmith. Always check your local and federal rules before assembly.

Installation Tips (Builder-Friendly)

1. Verify parts: Confirm muzzle thread pitch, gas system length, and barrel profile for your chosen handguard and gas block.

2. Tools & torque: Use an upper vise block, torque wrench, and armorer’s wrench. Follow the barrel nut manufacturer’s torque window and anti-seize/threadlocker guidance.

3. Gas block alignment: Align precisely over the port; dimple the barrel (if undimpled) for secure, repeatable set-screw retention.

4. Headspace check: Always verify with GO/NO-GO gauges when mixing barrels and bolts from different makers.

5. Function test: Test with your intended ammo (suppressed/unsuppressed if applicable), then zero and record your dope.

Care & Maintenance

• Nitride bores clean easily—avoid over-scrubbing. Use quality solvent, a one-piece rod, and protect the crown.

• Fastener checks: Re-inspect gas block, handguard, and muzzle device torque after the first range session.

• Keep your BCG properly lubricated and the chamber extension/feed ramps free of fouling for optimal reliability.

Safety & Compliance

• Ensure your configuration complies with federal, state, and local laws (barrel length, OAL, rifle vs. pistol, suppressors/NFA).

• Use only SAAMI-spec ammunition from reputable manufacturers.

• Follow all safe handling and assembly procedures; when in doubt, consult a qualified armorer.

What’s in the Box

• LBE Unlimited 14.50" CHF 5.56 NATO AR-15 Barrel — Black Nitride, Threaded (Model BAR145M, UPC 706612408288)

SEO-Friendly Highlights (Popular Search Terms)

LBE Unlimited 14.5" AR-15 barrel, BAR145M, 706612408288, 5.56 NATO CHF barrel, Black Nitride AR barrel, threaded 14.5 barrel 1/2x28 (verify), cold hammer forged 5.56, AR-15 replacement barrel, pin and weld 14.5 barrel, midlength/carbine gas (confirm).

Balanced, durable, and ready to run. The LBE Unlimited 14.50" CHF 5.56 NATO Barrel delivers forged strength, a nitride finish, and a threaded muzzle—your rock-solid foundation for a compact, reliable AR-15 that performs when it counts.
