Pietta 1851/60/61 Parts Kit — Fits 1860 Army & 1851 Navy Black Powder Revolvers (Model PAF51K | UPC 641996730528)

Keep your favorite cap-and-ball revolvers running like new with the Pietta 1851/60/61 Parts Kit (PAF51K). Built for the most popular Pietta 1860 Army and 1851 Navy percussion revolvers, this comprehensive small-parts bundle covers the high-wear springs, screws, and hardware that vintage-pattern wheelguns rely on for proper timing and reliable ignition. Whether you’re restoring a range veteran, preparing for a long reenactment weekend, or stocking a bench kit for routine maintenance, the PAF51K delivers factory-spec replacements from the maker who knows these classics best.

Why This Kit Belongs on Your Bench

• OEM Pietta Components: Factory-spec parts designed around Pietta tolerances for the 1851 Navy and 1860 Army platforms—no guesswork.

• Fix Common Wear Points: Refresh hand (pawl) springs, mainsprings, trigger/bolt springs, screws, and pins to restore crisp lockup and dependable cycling.

• Preventive Maintenance Made Easy: Swap tired springs and scarred screws before they become range-day stoppages.

• Perfect for Reenactors & Regular Shooters: Keep a compact kit in your range bag or gear box to address issues in minutes, not weeks.

• Budget-Friendly Reliability: Cheaper than piecemeal sourcing—and everything matches the period-correct pattern.

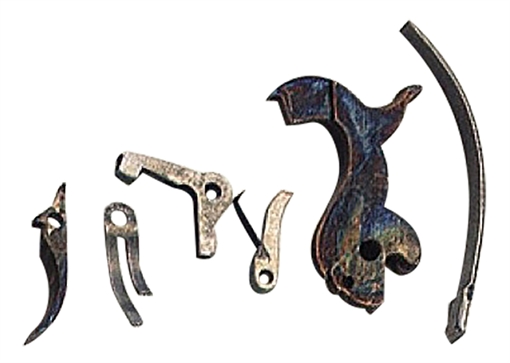

Typical Kit Contents*

(Contents may vary slightly by production run; check your package list.)

• Mainspring (hammer spring)

• Trigger/Bolt spring (two-leg leaf or wire style, model dependent)

• Hand (pawl) & hand spring

• Bolt (cylinder stop) & bolt spring

• Sear/trigger components

• Assorted screws (grip frame, backstrap, trigger guard, hammer, etc.)

• Pins & small hardware for common service items
  *Refer to the included contents card for the exact parts in your PAF51K.

Compatibility & Fit Notes

• Models: Pietta 1851 Navy (.36 cal) and 1860 Army (.44 cal) pattern revolvers; also useful for many 1861 Navy components.

• Platform: Cap-and-ball percussion revolvers (black powder).

• Manufacturer: For Pietta revolvers; non-Pietta replicas may require gunsmith fitting.

• Hand Fitting: Minor filing or stoning may be required to achieve ideal timing and trigger feel—especially for bolt/hand interfaces.

Signs It’s Time to Rebuild

• Slow or inconsistent cylinder rotation at half-cock or full-cock.

• Light primer (cap) hits or intermittent ignition.

• Lazy cylinder lockup (bolt not dropping fully into the notch).

• Mushy trigger feel or weak hammer fall after long use.

• Backed-out, marred, or stripped screws from repeated fieldstripping.

Basic Service Tips (Overview)

Always work unloaded. Remove caps, verify empty chambers, and wear eye protection.

1. Disassemble Methodically: Photograph each step to match orientation during reassembly.

2. Check Timing: After installing hand/bolt/springs, verify the bolt drops before the notch and locks the cylinder cleanly at full cock.

3. Use Proper Tools: Hollow-ground screwdrivers prevent buggered slots; a small stone/polish stick helps with fine tuning.

4. Blue Threadlocker (Optional): A micro-drop on grip frame screws can curb loosening—avoid on parts requiring frequent removal.

5. Function Test: Cycle slowly through all notches at half- and full-cock, then dry-fire with spent caps to confirm reliable operation.

Black Powder Care Reminders

• Same-Day Cleaning: Black powder residue is corrosive—clean the cylinder, arbor, nipples, and frame window after every session.

• Inspect Springs: Heat and fouling fatigue springs over time; replace at the first sign of set or cracking.

• Nipple Condition: Worn nipples and poor-fitting caps cause misfires; replace as needed and match cap size.

Who This Kit Is For

• Range shooters keeping a favorite Pietta revolver in peak condition.

• Reenactors & living historians who need dependable function for full-day events.

• Hobby gunsmiths & collectors maintaining multiple cap-and-ball models.

Specifications

• Brand/Manufacturer: Pietta

• Product: 1851/60/61 Parts Kit

• Use: Small-parts replacement for 1860 Army / 1851 Navy (select 1861 components)

• Platform: Black powder (cap-and-ball) revolvers

• Model #: PAF51K

• UPC: 641996730528

What’s in the Box

• Pietta PAF51K Parts Kit (assortment of compatible springs, screws, and small components)

• Factory contents card/instructions (when provided)

Safety & Legal

• Follow local laws regarding black powder parts & service.

• If you’re unsure about timing, sear engagement, or bolt fit, consult a qualified gunsmith—improper fitting can damage your revolver or cause unsafe operation.

SEO-Friendly Keywords (Use Naturally on Your Product Page)

Pietta 1851 1860 parts kit, PAF51K, 1851 Navy replacement parts, 1860 Army spring kit, cap and ball revolver repair parts, black powder revolver screws springs, Pietta percussion revolver maintenance kit, UPC 641996730528.

Restore crisp timing and reliable ignition—stock the Pietta 1851/60/61 Parts Kit (PAF51K) and keep your 1851 Navy and 1860 Army revolvers ready for the next range day or reenactment.
