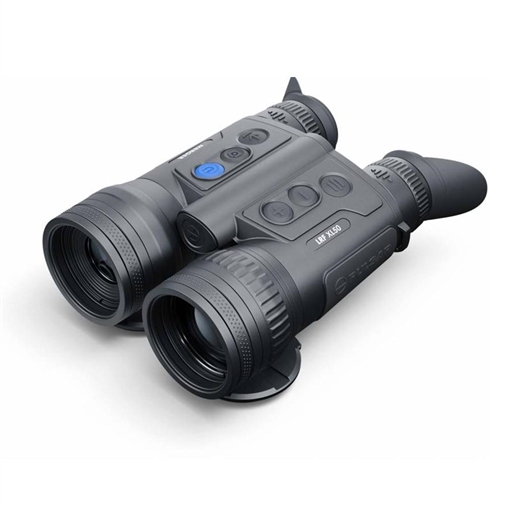

The Merger LRF XL50 is an advanced thermal imaging binocular by Pulsar that combines a new HD 1024x768 <40mK NETD thermal sensor, 2.5-20x magnification range, wide field of view, and exceptional detection capabilities. With a classic design augmented with a detection range of over 2,500 yards and a precise laser rangefinder with a view distance of over 1,000 yards, it offers an unmatched viewing experience for outdoor enthusiasts and professionals.
Its rugged housing, a built-in recorder, and Wi-Fi integration, high-definition images, dual battery system with 8 hours of battery life, and convenient features make it an ideal choice for uncompromised trophy identification, easy scanning, accurate target assessment, and durable use in various environmental conditions.
MAIN
- Sensor: HD 1024x768 @ 12 µm (NETD <40 mK)
- Objective lens: F50 / 1.0
- Magnification: x2.5 – 20 (x8 zoom)
- Field of view (HxV), degrees / m @ 100 m: 14x10.5 / 24.6x18.5
- Detection range, m: 2300
SENSOR
- Type: uncooled
- Resolution, pixels: 1024x768
- Pixel pitch, µm: 12
- NETD, mK: <40
- Frame rate, Hz: 50
OPTICS
- Objective lens: F50 / 1.0
- Magnification: x2.5 – 20
- Field of view (HxV), degrees / m @ 100 m: 14x10.5 / 24.6x18.5
- Interpupillary distance adjustment, mm: 62 – 74
- Eye relief, mm: 15
DISPLAY
- Type: AMOLED HD
- Resolution, pixels: 1024x768
- Range Performance
- Detection range, m: 2300
LASER RANGEFINDER
- Safety class for laser equipment according to IEC 60825-1:20141
- Wavelength, nm: 905
- Max. measuring range, m: 1000
- Measurement accuracy, m: ±1
VIDEO RECORDER
- Video / photo resolution, pixel: 1024x768
- Video / photo format: .mp4 / .jpg
- Built-in memory, GB: 64
WI-FI
- Wireless Protocol: Wi-Fi
- Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
- Frequency, GHz: 2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
- Degree of protection, IP code (IEC60529): IP?7 (waterproof)
- Operating temperature range, °?: -25 – +50
CONNECTIONS AND COMPATIBILITIES
- Mount, type: 1/4"" socket
- Supported Application: Stream Vision 2
POWER SUPPLY
- Output voltage, V: 3.7
- Battery type: Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
- Capacity, mAh: 3200 (external) + 4000 (internal)
- Operating time on battery pack (at t=22°C), h: 8
- External power supply, V: 5V, 9V (USB Type-C Power Delivery)
WEIGHT & SIZE
- Body material: Magnesium alloy
- Dimensions, mm: 197x140x72"
Manufacturer Part Number: PL77481
