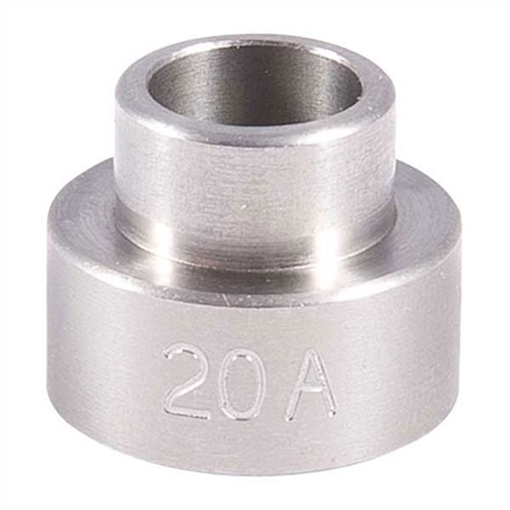

Sinclair Bump Gage Insert – Model 050806111301 (UPC 050806111301)
The Sinclair Bump Gage Insert 050806111301 is a top‑tier precision measuring component designed for professionals who demand accuracy and durability in their tooling. Engineered by Sinclair, a trusted name in measurement technology, this bump gage insert delivers consistent performance for a wide range of applications, from automotive body repair to industrial machining.
Why Choose the Sinclair Bump Gage Insert?
- Unmatched Precision: Manufactured to ±0.001 in (±0.025 mm) tolerance, ensuring reliable measurements every time.
- Robust Construction: Made from hardened steel with a corrosion‑resistant coating for long‑lasting durability.
- Easy Installation: Fits seamlessly into standard Sinclair bump gage housings for quick setup and minimal downtime.
- Versatile Use: Ideal for panel beating, dent removal, sheet metal work, and CNC machine calibration.
- Consistent Performance: Engineered to maintain accuracy after thousands of cycles, even under harsh shop conditions.
Product Features
| Feature | Specification |
|---|
| Model Number | 050806111301 |
| UPC | 050806111301 |
| Material | Hardened steel with anti‑corrosion coating |
| Measurement Range | 0.001 in – 0.250 in (0.025 mm – 6.35 mm) |
| Tolerance | ±0.001 in (±0.025 mm) |
| Diameter | 0.500 in (12.7 mm) |
| Compatibility | Standard Sinclair bump gage housings (e.g., SG‑100, SG‑200 series) |
| Finish | Black oxide, rust‑resistant |
| Weight | 0.12 lb (55 g) |
Typical Applications
Whether you are a professional auto body technician, a machine shop engineer, or a DIY enthusiast, the Sinclair Bump Gage Insert 050806111301 provides the accuracy you need for:
- Measuring dent depth and panel deformation.
- Setting reference points for weld bead placement.
- Calibrating CNC milling and turning equipment.
- Verifying thickness of sheet metal before forming.
- Quality control inspections in aerospace and automotive manufacturing.
Installation & Usage Instructions
- Prepare the Gage Housing: Ensure the housing is clean and free of debris.
- Insert the Bump Gage: Align the tapered end of the insert with the housing socket and gently push until it seats fully.
- Secure the Insert: Tighten the housing lock screw to the recommended torque (typically 4–6 Nm).
- Zero the Gauge: Place the gage on a known flat reference surface and adjust the dial to zero.
- Take Measurements: Gently press the bump tip against the workpiece and read the measurement on the dial.
For best results, always store the insert in a dry environment and avoid impact with hard surfaces when not in use.
Sinclair Bump Gage Insert, 050806111301, UPC 050806111301, precision bump gauge, automotive repair tools, dent measuring tool, sheet metal measurement, hardened steel gage insert, Sinclair measurement accessories, professional body shop equipment, CNC calibration tool.
Quality Assurance & Warranty
Sinclair stands behind every product with a 12‑month limited warranty. This insert is rigorously tested to meet ISO 9001 standards, guaranteeing consistent performance and reliability throughout its service life.
Upgrade your measurement toolkit today with the Sinclair Bump Gage Insert 050806111301 and experience the difference that precision engineering can make in your workflow.
