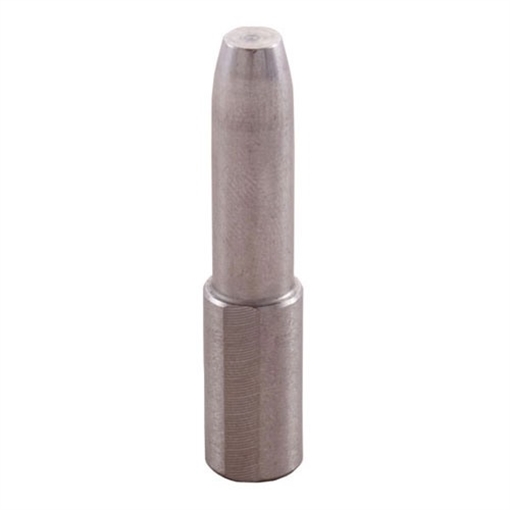

Stainless Steel Large Caliber Turning Mandrels 749002101
Engineered for the most demanding turning operations, the Stainless Steel Large Caliber Turning Mandrels 749002101 deliver unmatched precision, durability, and corrosion resistance. Ideal for aerospace, automotive, medical, and high‑performance industrial applications, these mandrels are the cornerstone of flawless component production.
Key Features & Benefits
- Premium 304/316 Stainless Steel Construction – provides superior resistance to rust, chemicals, and extreme temperatures.
- Large Caliber Design – accommodates oversized workpieces up to 250 mm diameter without compromising stability.
- High‑Precision Turning – ground to ±0.005 mm tolerance for exact concentricity and surface finish.
- Optimized Rigidity – engineered with reinforced flanges and a solid core to minimize deflection during high‑speed machining.
- Easy Installation – standardized mounting interface compatible with major CNC turning centers.
- Enhanced Heat Dissipation – stainless steel’s thermal conductivity ensures consistent temperature control during prolonged runs.
- Long Service Life – designed to withstand repetitive loading cycles, reducing downtime and tool change frequency.
Technical Specifications
| Specification | Detail |
|---|
| Model Number | 749002101 |
| Material | 304/316 Stainless Steel (AISI) |
| Maximum Caliber | 250 mm (9.84 in) |
| Overall Length | 500 mm (19.68 in) – optional extended lengths available |
| Tolerance | ±0.005 mm (±0.0002 in) |
| Surface Finish | Ra 0.2 µm (8 µin) or better |
| Weight | ≈12 kg (26.5 lb) |
| Mounting Interface | ISO 50‑Series CNC spindle adapter |
| Heat Treatment | Solution annealed for optimum strength |
| Compliance | ISO 9001, ASTM A240 |
Why Choose 749002101?
When precision matters, you need a mandrel that can stand up to the toughest environments. The STAINLESS STEEL LARGE CALIBER TURNING MANDRELS 749002101 offers a unique blend of high tensile strength, corrosion resistance, and dimensional stability that translates into:
- Reduced scrap rates and tighter tolerances.
- Lower maintenance costs thanks to the stainless steel’s self‑protecting nature.
- Increased machining speeds without sacrificing surface quality.
- Versatility across multiple industries and material types, from hardened steels to exotic alloys.
Applications
This mandrel is purpose‑built for a range of high‑value manufacturing scenarios, including:
- Precision aerospace components (e.g., turbine shafts, landing gear parts)
- Automotive performance engine blocks and crankshafts
- Medical device manufacturing (e.g., surgical instruments, implants)
- Industrial tooling and heavy‑duty equipment parts
- Custom prototyping where large diameters and exact geometry are required
Installation & Maintenance Tips
- Inspect the mandrel for any visible damage before mounting.
- Ensure the spindle adapter is clean and free of debris.
- Secure the mandrel using the recommended torque settings (refer to machine manual).
- After each use, wipe the surface with a lint‑free cloth and a mild stainless‑steel cleaner.
- Periodically check for wear on the flanges and replace if any deformation is observed.
Customer Support
Our technical team is ready to assist with installation guidance, custom specifications, and troubleshooting. Contact us via phone, email, or live chat for fast, expert support.
Elevate your turning operations with the reliability and performance of the STAINLESS STEEL LARGE CALIBER TURNING MANDRELS 749002101 – the ultimate choice for precision‑driven manufacturers.
