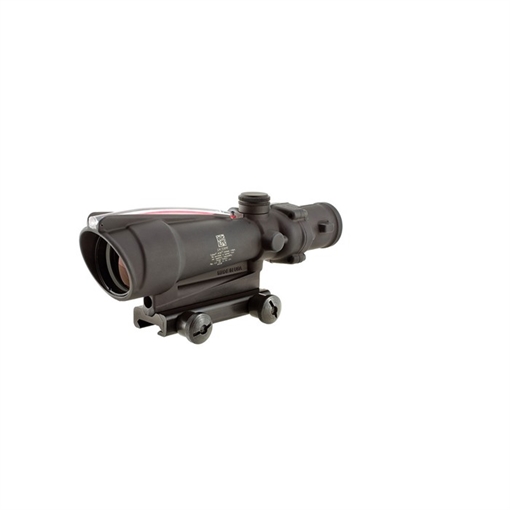

Trijicon ACOG® 3.5 x 35 Dual Illuminated Red Chevron BAC .308 Flattop Reticle w/ TA51 Mount TRI-100142

ACOG 3.5x35 scope with Red Chevron BAC Reticle- The ranging reticle is calibrated for 7.62 (.308 cal) flat-top rifles to 800 meters. Includes Flat Top Adapter. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is at 19” at 300 meters. This allows range estimation for silhouette targets.

TA11E Trijicon ACOG 3.5x35 Scope Includes

1 ACOG Thumbscrew Flattop Adapter (TA51)
1 3.5x35 Scopecoat (TA63)
1 LENSPEN® (TA56)
1 Lanyard Assembly for Adjuster Caps (TA71E)
1 Trijicon Logo Sticker (PR15)
1 ACOG BAC Manual 1 Warranty Card

TA11E Trijicon ACOG 3.5x35 Scope Specifications

• Magnification: 3.5x
• Objective Size (mm): 35
• Bullet Drop Compensator: Yes
• Length (in): 8
• Weight (oz): 14.0 w/out mount
• Illumination Source: Fiber Optics & Tritium
• Reticle Pattern: Chevron
• Day Reticle Color: Red
• Night Reticle Color: Red
• Calibration: 0.308
• Bindon Aiming Concept: Yes
• Eye Relief (in): 2.4
• Exit Pupil (mm): 10
• Field of View (Degrees): 5.5
• Field of View @ 100 yards (ft): 28.9
• Adjustment @ 100 yards (clicks/in): 3
• Mount: TA51 (Mount Comes With TA51 Housing Material)

#TAG# TRI-10014; TRI-1001; TRI-100; TRI-1; TRI #TAG#

NO RETURNS WILL BE ACCEPTED ON THIS PRODUCT
