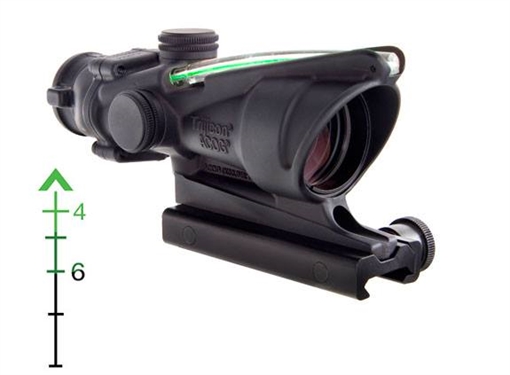

Trijicon ACOG Black Hardcoat Anodized 4x 32mm Illuminated Green Chevron .223/5.56 BDC Reticle 100218

There's a reason the Trijicon ACOG® (Advanced Combat Optical Gunsight) is the official medium-distance engagement optic of the Marine Corps and U.S. Special Operations Forces.

And there’s a reason why more than one million ACOGs have been produced. Every feature of its innovative design was chosen for a single purpose: to provide increased hit potential in all lighting conditions. This is possible through a brilliantly illuminated reticle pattern, a compact design, and legendary durability that continues to lead the industry.

FEATURES:

ALWAYS ON, ALWAYS READY

Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

INCLUDED IN BOX:

• Thumbscrew Flattop Adapter (TA51)
• 4x32 Scopecoat (TA64)
• LENSPEN (TA56)
• Lanyard Assembly for Adjuster Caps (TA71E)
• Trijicon Logo Sticker (PR15)
• ACOG Manual
• Warranty Card

SPECIFICATIONS:

• Weight – 15.1 oz. (428.08g)
• Magnification - 4x
• Objective Size - 32mm
• Reticle Pattern - Chevron, Crosshair, Horseshoe/Dot
• Day Reticle Color – Red or Green
• Night Reticle Color – Red or Green
• Bullet Drop Compensating (BDC) - Yes
• Caliber - 0.223 (14.5 in. barrel)
• Bindon Aiming Concept™ (BAC) - Yes
• Illumination Source - Fiber Optics & Tritium
• Power Source - Fiber Optics & Tritium
• Eye Relief - 1.5 in. (38.1mm)
• Exit Pupil - 0.32 in. (8.13mm)
• Field of View (degrees) - 7°
• Field of View (feet) - 36.8 ft. @ 100 yds. (12.27m @ 100m)
• Mount - Flattop Thumbscrew Mount (TA51)
• Housing Material - Forged Aluminum
• Finish - Matte Black or Tiger Camo
